Swit 100W Bi-color SMD Studio Panel LED light – S-2430C

Swit S-2430C 100W Bi-color SMD Studio Panel LED light

1152pcs Surface Mounted LEDs

Area light, soft and glareless S-2430C is a studio panel LED light, with surface mounted LED technology, includes 1152pcs ultra bright LEDs. The build-in diffuser generates an equally spread area light of 70° effective wide beam angle, which is an ideal light source for broadcast studio and field video productions.

Bi-color temperature

3200K-5600K continuously adjustable S-2430C alternated with 5600K and 3200K LEDs, and the output color temperature can be continuously adjustable between 3200K and 5600K.

2500 Lux @ 1 meter

10-100% flick-free dimming S-2430C outputs 100W power, feeds 2500Lux luminance at 1 meter distance (center), supports 10% to 100% PWM digital dimming, smoothly and non-flickering.

High Color Reveal Ability

CRI Ra 93; TLCI 97 CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the color reveal ability by camera sensor. Max value 100. The normal LED light has 80-85 CRI or TLCI, while S-2430C offers the super high CRI at 93 and TLCI at 97, and will not lose the object original colors.

DMX512 Control

Dimmer and Color temperature S-2430C adopts standard 5-pin DMX in/out port, supports DMX512 protocol, and adjusts dimmer and color temperature by DMX controller.
The dimmer and color temperature occupy 1 DMX address respectively.

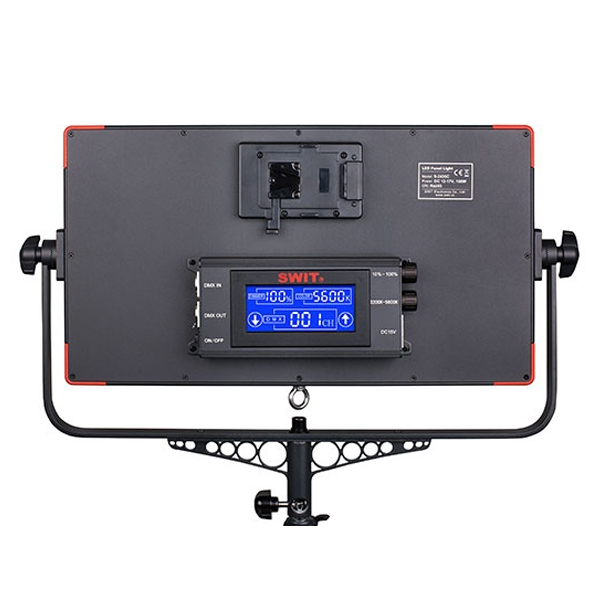

LCD screen display

Dimmer/color temperature value, DMX address The rear LCD screen can display the current dimmer percentage, color temperature value, and supports touch control to set DMX address.

DC 12-17V Power Supply

By V-mount battery / AC-DC adaptor S-2430C supports 12-17V 4-pin XLR DC input, and is equipped with a battery plate to power by V-mount battery, or powered by AC-DC adaptor.
The AC-DC adaptor is supplied with a V-wedge, so that you can fix the adaptor onto the V-mount plate of the light.

4-leaf Metal Barn Door

Easy to disassemble S-2430C has all-metal housing, and equipped with a 4-leaf metal barn door, snap on install, and easy to disassemble.

U-shape Bracket

Dual security rope S-2430C supplied with a U-shape bracket for lighting tripod install or celling hanging install. The product package provides 2x steel security rope for both light body and U-shape bracket.
