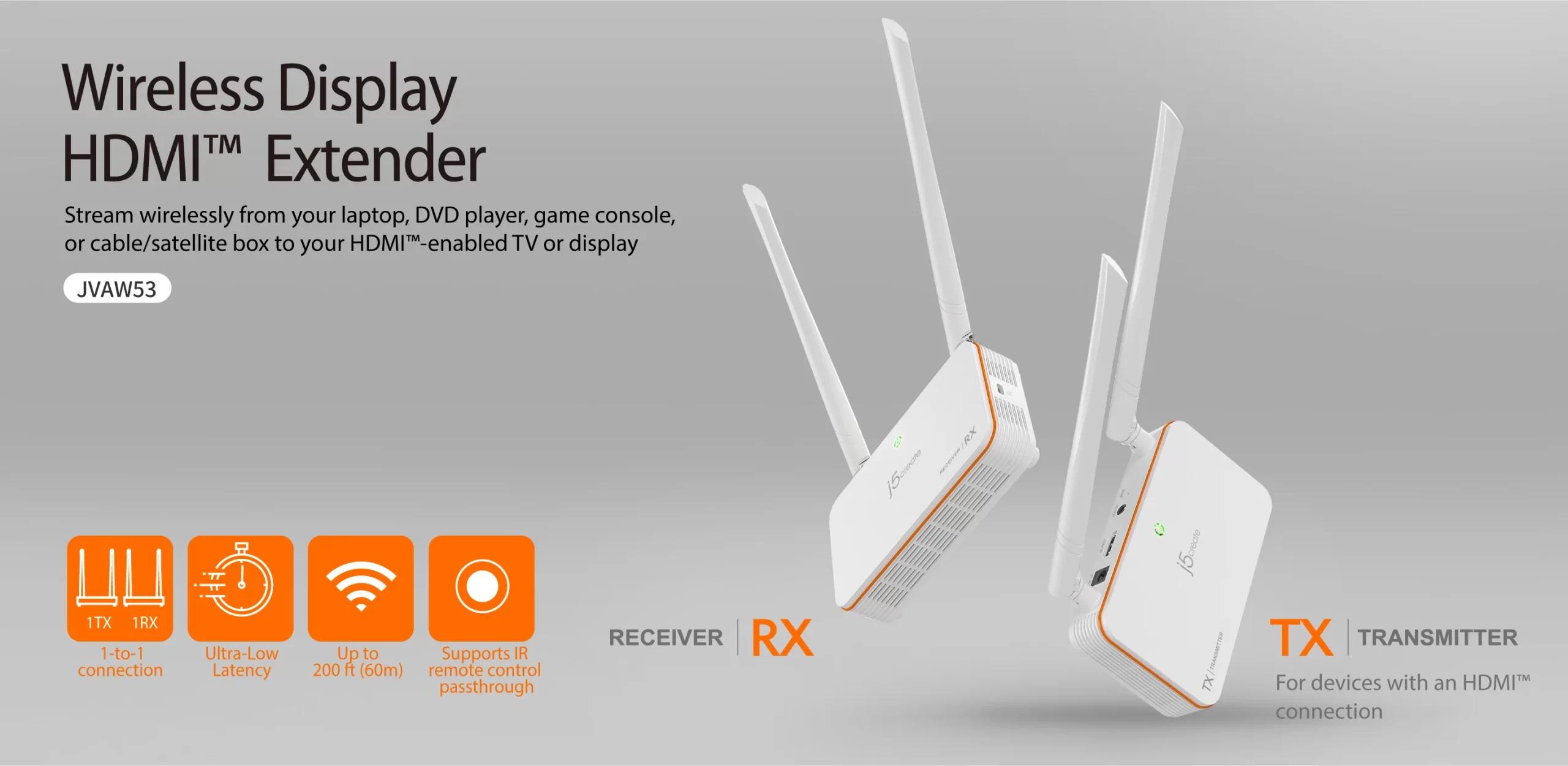

J5 Create Wireless Display HDMI Extender – JVAW53

J5 Create
Availability:

Out of stock
Add to wishlist

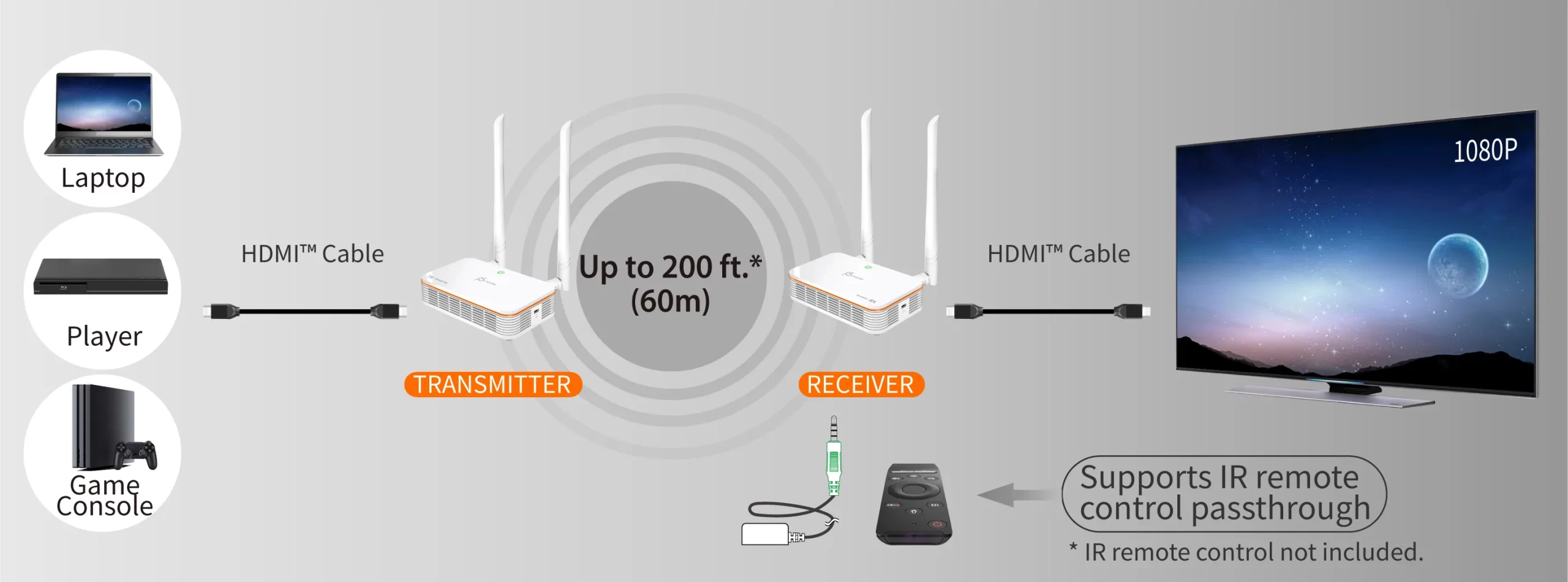

  • Wirelessly stream from a distant device without the hassle of installing cables
  • Antenna 5 dB, AC 2 x 2 supports up to 200 ft (60m) wireless range
  • Transmit HDMI™ audio and video signal with ultra-low latency (less than 0.06s/60ms)
  • 5 GHz wireless technology ensures a stable connection for a smooth streaming experience
  • Built-in infrared signal lets you control video sources with the original remote via included IR extender cable
  • Compliant with HDMI™ 1.3, HDCP 1.2 and DVI 1.0
  • Compatible with all HDMI™ enabled devices including game consoles, set-top boxes, and more
  • Easily create a wireless conference room and/or a wireless media environment

AED 645.00 AED 699.00

Store:  AL NAHAR ELECTRONICS TRADING CO. (L.L.C.)
5 out of 5

Out of stock

Item will be shipped in 3-5 business days

Join the waitlist to be emailed when this product becomes available

J5 Create Wireless Display HDMI Extender | PLUGnPOINT

J5 Create Wireless Display HDMI Extender - JVAW53 J5 Create Wireless Display HDMI Extender - JVAW53 J5 Create Wireless Display HDMI Extender - JVAW53 J5 Create Wireless Display HDMI Extender - JVAW53 J5 Create Wireless Display HDMI Extender - JVAW53

SKU: JVAW53 Category:
Hardware
Host Connector

1 – HDMI™ Female Input (Transmitter)

1 – HDMI™ Female Output (Receiver)

Infrared: Yes
Led Indicators: Red: power on, Orange: system booting, Green: system ready
Ports

1 – HDMI™ Female

1 – 5V DC jack 3.5 mm

1 – IR port

Power Source: Self-Powered
Performance
Audio Channel: 2.1 via HDMI™
ESD Protection: Yes

air-gap discharge: ± 8 KV
contact discharge: ± 4 KV

HDCP Compliance: HDCP 1.2
HDMI Compliance: HDMI™ v1.3
Infrared Return Frequency: 30 – 60 kHz
Ovp Protection: Up to DC 20 volts
Rf Output Power: +15 dBm +/- 1 dBm
Security – Encryption: 128/256-bit AES-based encryption and WPA2
Supported Resolution – Output

1920 x 1080
1680 x 1050
1600 x 1200 / 900
1440 x 900
1400 x 1050
1366 x 768
1360 x 768
1280 x 1024 / 800 / 768 / 720
1024 x 768 / 576
852 x 480
800 x 600
768 x 576
720 x 576
704 x 576
640 x 480
Physical Specifications
Cable Length

HDMI™ cable ≈ 3.28 ft ( 39.37 in)
IR blaster cable ≈ 4.75 ft (57 in )
IR receiver cable ≈ 4.75 ft (57 in )
DC adapter ≈ 4.58 ft (54.96 in)

Color: White, Orange
Enclosure Type: ABS Plastic
Operating Humidity: < 80% non-condensing
Operating Temperature: +32 to +104 °F (0 to +40 °C)
Product Depth: 2.99 in (76mm)
Product Height: 1.31 in (33.5mm)
Product Weight: 5.30 oz (150.5g)
Product Width: 5.31 in (135mm)
Storage Humidity: < 80% non-condensing
Storage Temperature: -40 to +158 °F (-40 to +70 °C)
Wireless Protocols
Antenna Type: Dual external antenna (+5 dBi)
Channel Width: 20 MHz or 40 MHz or 80 MHz
Frequency: 5 GHz Band I, Band IV, CE only Band I
Range: Up to 60 meters
Standard: IEEE 802.11ac
Package Contents
  • 1 – JVAW53TX HDMI™ Transmitter
  • 1 – JVAW53RX HDMI™ Receiver
  • 1 – IR blaster cable
  • 1 – IR receiver cable
  • 2 – 5V DC/2A adapter
  • 1 – HDMI™ cable
  • 1 – Quick Installation Guide (QIG)
