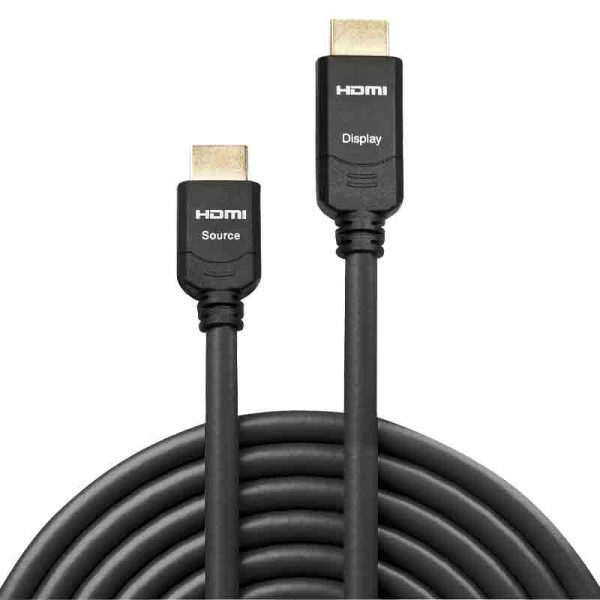

LINDY active cables must be connected in accordance with the instructions. The connector marked with “Monitor” must be connected to the monitor or screen. Failure to connect the cable in the correct manner will result in no signal. Some projectors have recessed HDMI sockets. You should make sure they can accommodate the connector used on this cable. The connector dimensions are 19 x 38 x 11mm (WxDxH). High-Speed HDMI Active Cables can not be connected together or ‘daisy chained’. The HDMI High-Speed specification offers many benefits over the previous version:
HDMI Ethernet Channel (HEC): The High-Speed HDMI HEC Cable specification has an additional data channel that enables high-speed bidirectional communication. Connected devices that include this feature will be able to send and receive data via 100 MB/sec Ethernet, making them instantly ready for any IP-based application.
It will also allow internet-enabled HDMI devices to share their internet connection with other HDMI devices without the need for a separate Ethernet cable. This new feature will also provide the connection platform to allow HDMI-enabled devices to share content between devices.
Audio Return Channel (ARC): The HDMI specification has an Audio Return Channel that will reduce the number of cables required to deliver audio upstream for processing and playback. In cases where HDTVs are directly receiving audio and video content, the Audio Return Channel allows the HDTV to send the audio stream to the A/V receiver over the HDMI cable, eliminating the need for an extra cable.
3D: The HDMI specification defines common 3D formats and resolutions for HDMI-enabled devices. The specification will standardize the input/output portion of the home 3D system and will specify up to dual-stream 1080p resolution.
4K: The HDMI specification will enable HDMI devices to support high-definition (HD) resolutions four times beyond the resolution of 1080p. Support for 4K will allow the HDMI interface to transmit content at the same resolution as many digital theatres.
Content-Type : Content Type enables automated picture setting selection with no user intervention. The Content Type feature enables a display to auto-detect the correct viewing mode to match the Content Type it is receiving from a source device, and to switch modes when a newly connected source is selected. Content Type supports content profiles for gaming, movie, photograph, and text viewing modes.
Audio Formats: HDMI supports multi-channel digital audio on a single cable. It transmits all ATSC HDTV standards and supports 8-channel, 192kHz, uncompressed digital audio and all currently available compressed formats (such as Dolby Digital & DTS), HDMI 1.3 adds additional support for new lossless digital audio formats Dolby TrueHD and DTS-HD Master AudioTM with bandwidth to spare to accommodate future enhancements and requirements.
Amongst others the following formats are supported: • SA-CD • DTS-HD Master AudioTM • DVD-Audio • Dolby TrueHD • Dolby Digital / Plus • MPEG1 Layer I / II • MPEG2 • MP3 • AAC LC • DST / DSD (as used in SA-CD) • DTS • ATRAC • WMA Pro • MLP (as used in DVD-Audio)
Expanded Support for Colour Spaces: HDMI technology supports color spaces designed specifically for digital still cameras. By supporting sYCC601, Adobe RGB and AdobeYCC601, HDMI-enabled display devices will be capable of reproducing more accurate life-like colors when connected to a digital still camera.
