J5 Create Ultra Drive Kit USB C Multi-Display Modular Dock – JCD389
Availability:
Out of stock

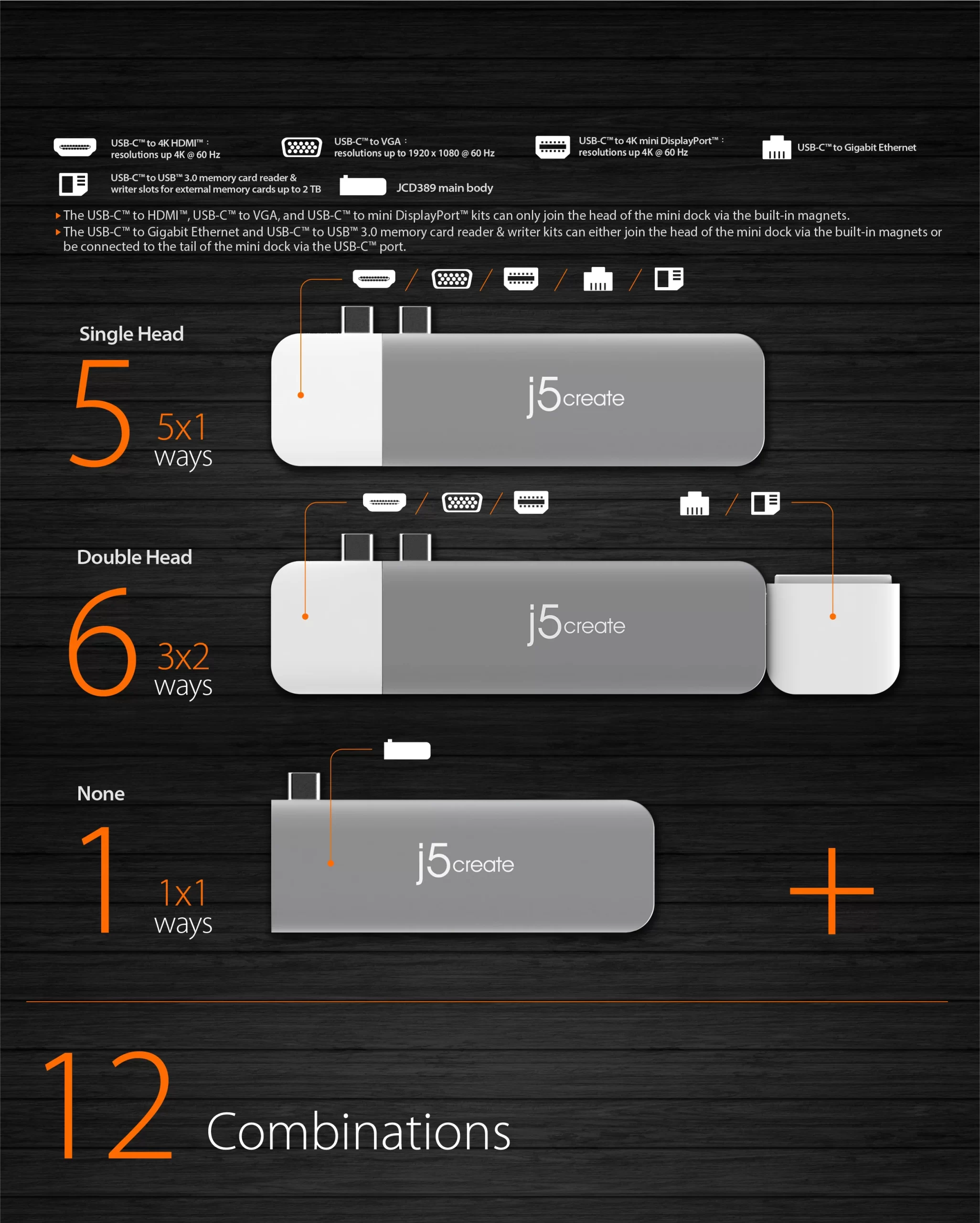

- 12 Combinations for 11-in-1 Functions:

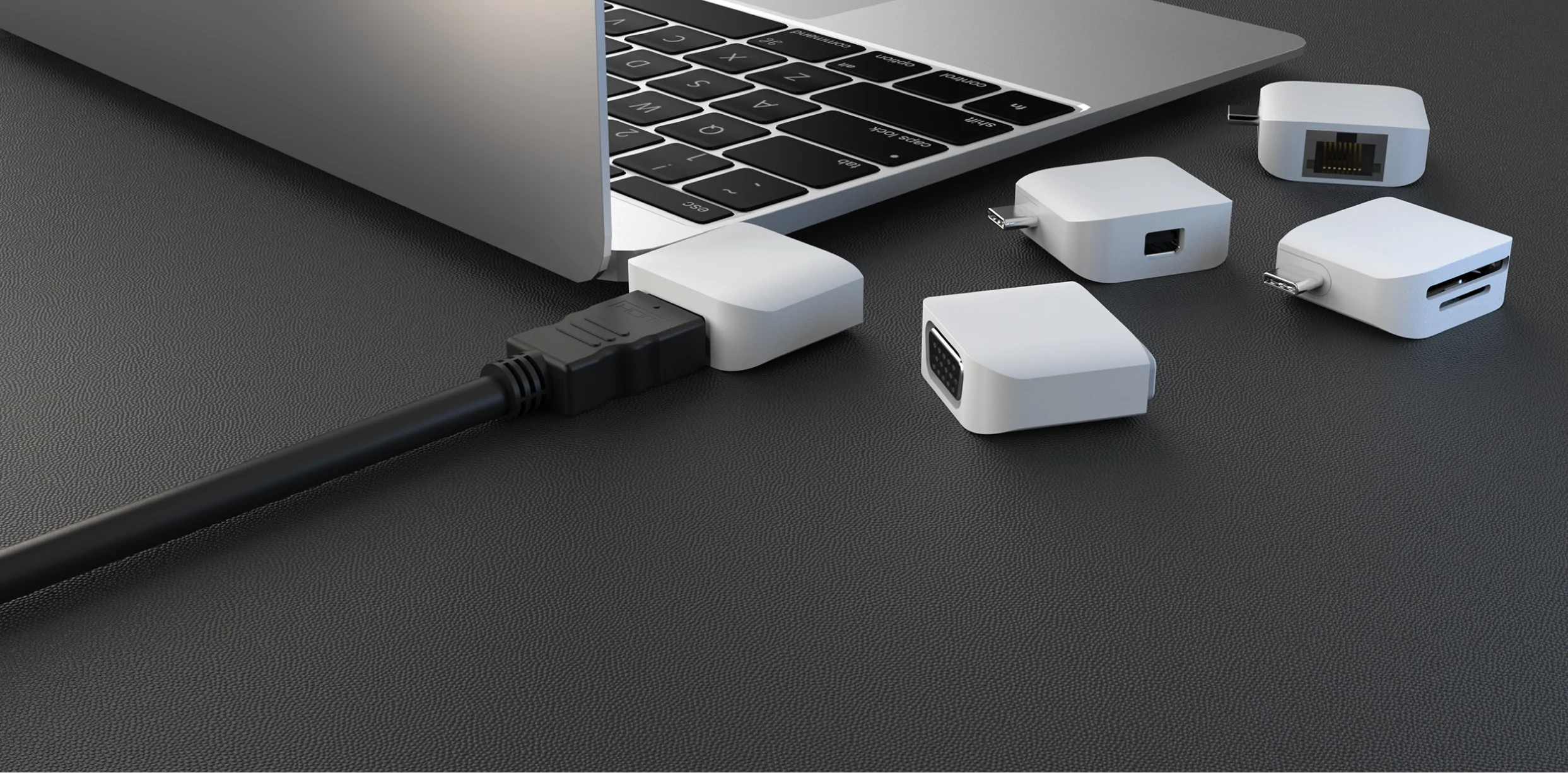

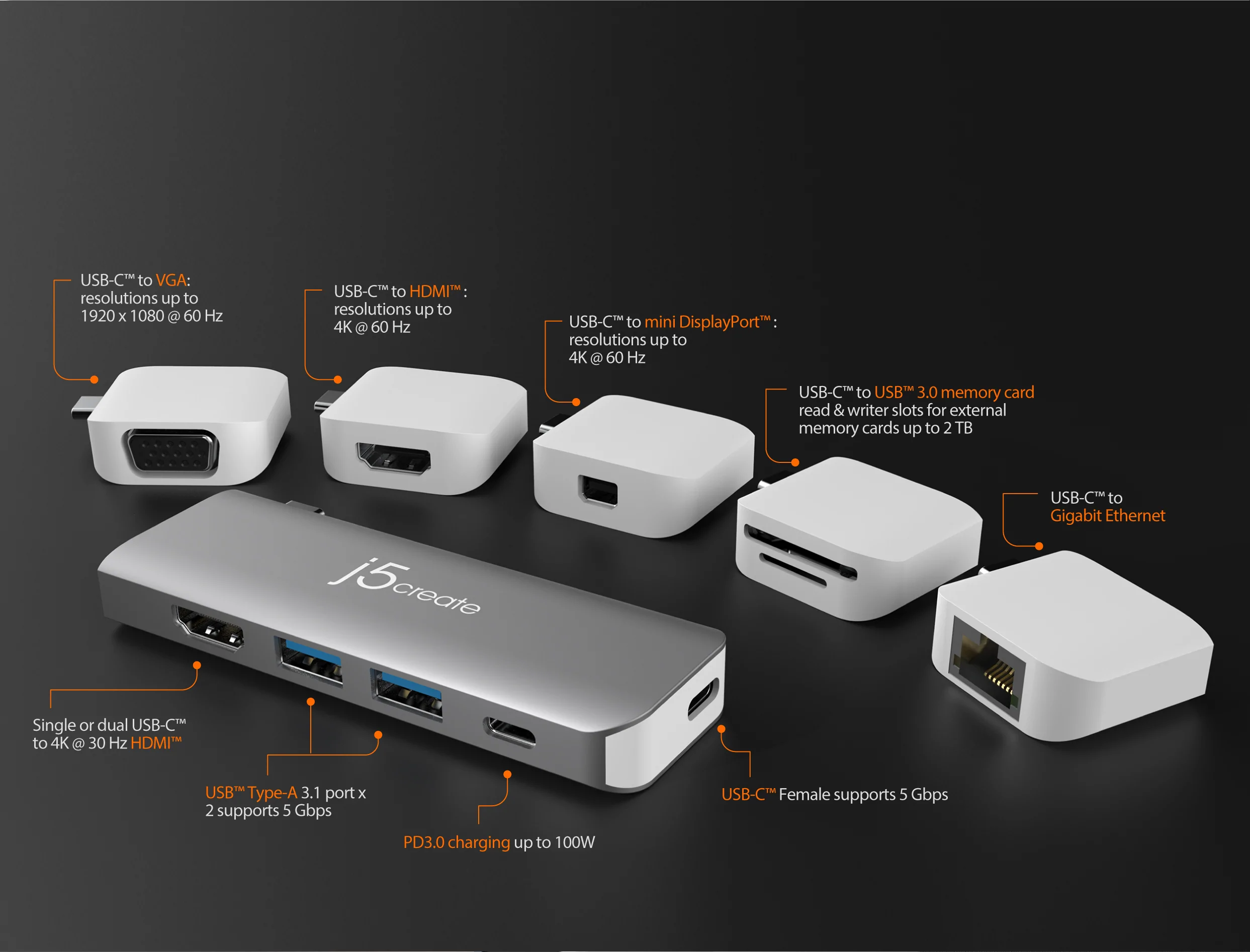

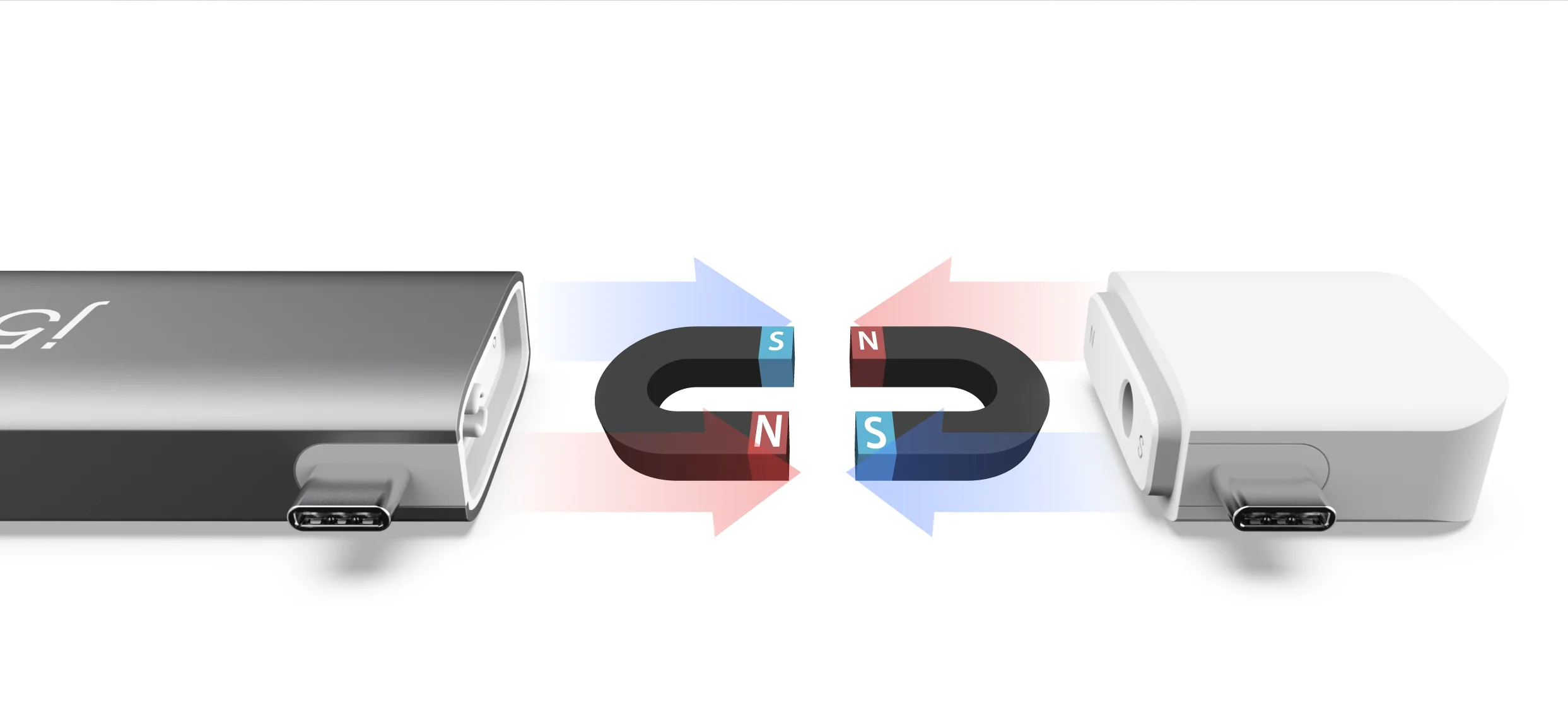

Each module can work separately as a stand-alone mini adapter or be magnetically attached to the main body for use together - 5 Magnetic Kits:
1) USB-C™ to HDMI™ with resolutions up to 3840 x 2106 @ 60 Hz
2) USB-C™ to mini DisplayPort™ with resolutions up to 3840 x 2160 @ 60 Hz
3) USB-C™ to VGA with resolutions up to 1920 x 1080 @ 60 Hz
4) USB-C™ to Gigabit Ethernet

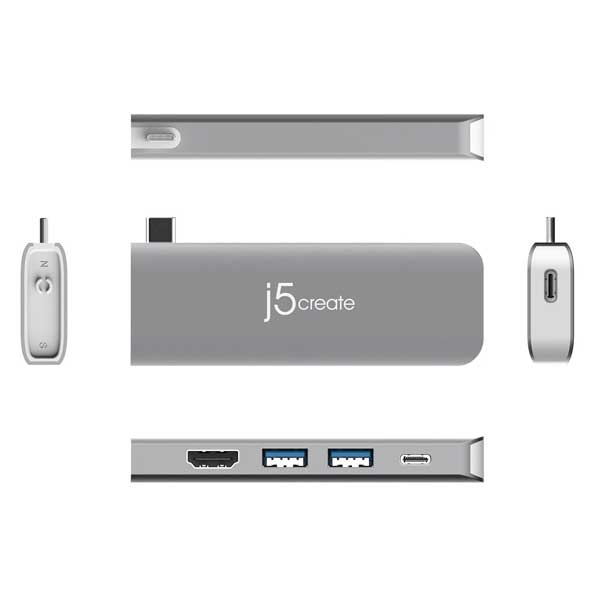

5) USB-C™ to SD™/microSD™ 3.0 memory card reader/writer slots for external memory cards up to 2 TB - Main Body of Dock:
1) USB-C™ to 4K @ 30 Hz HDMI™
2) USB™ Type-A 3.1 Gen 1 port x2 supports 5 Gbps data transfer
3) USB-C™ Power Delivery 3.0 charging up to 100W
4) USB-C™ 3.1 Gen 1 supports 5 Gbps data transfer - Dual or Triple Monitors:

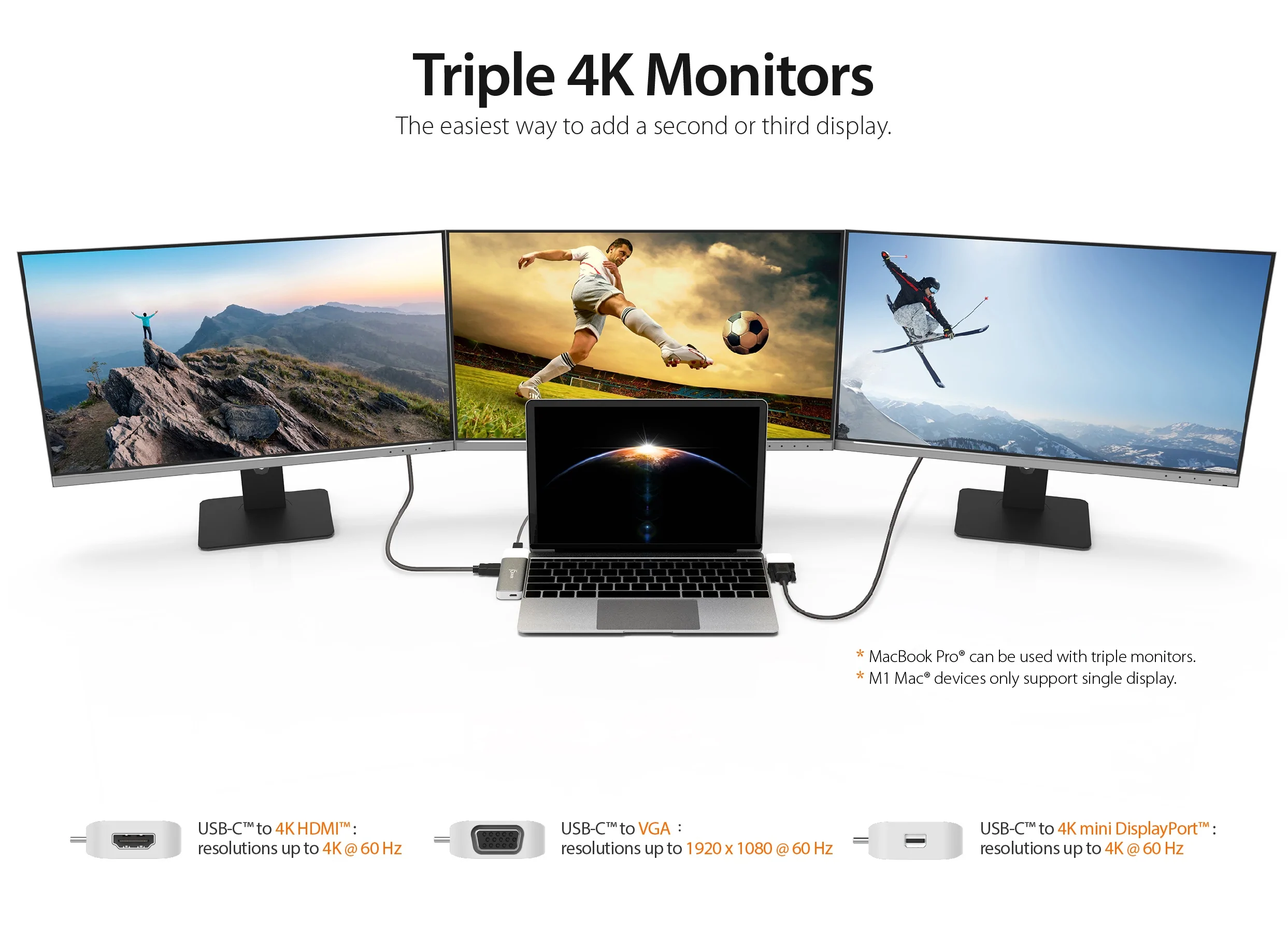

When the main body and USB-C™ to 4K HDMI™, USB-C™ to 4K mini DisplayPort™, or HDMI™ to VGA are used at the same time, a MacBook Pro® can be used with triple monitors. - Perfect for MacBook®:
Compatible with MacBook Pro® 2016-2019 / MacBook Air® 2018-2019 / 12″ MacBook® 2015 or later
AED 445.00 AED 489.00
Out of stock
Item will be shipped in 3-5 business days
J5 Create USB C Multi-Display Modular Dock | PLUGnPOINT
| Hardware | |
|---|---|
|
Audio Supported
Yes
Host Connector
Main Body: USB-C™ Male Magnetic Kits: USB-C™ Male Network Interface
Main Body: N/A
Magnetic Kits: RJ45 (Gigabit Ethernet) Ports
Main Body:
Magnetic Kits (stand-alone mini adapters):
Power Source
Bus-powered or self-powered
Video Output
Main Body:
Magnetic Kits:
|
|
| Performance | |
|
Audio Channel
Main Body: 2.1 via HDMI™
Magnetic Kits: 2.1 via HDMI™/ mini DisplayPort™ Compatible Networks
Main Body: N/A
Magnetic Kits: 10 / 100 / 1000 Mbps Displays Supported
Main Body: 1 Magnetic Kits: 3 (when used with the main body and connected to a compatible MacBook®) Max Data Transfer Rate
Main Body: 5 Gbps Magnetic Kits: 5 Gbps Max Display Refresh Rate
Main Body: 30 Hz Magnetic Kits: 60 Hz Max Display Resolution
Main Body: 3840 x 2160 Magnetic Kits: 3840 x 2160 |
|
| Power | |
|
Input Current
Up to 5A
Input Voltage
Up to 20V
Output Current
Up to 4.75A
Output Voltage
Up to 20V
Power Consumption
≤ 600 mA
Power Delivery
Up to 100W via USB-C™
|
|
| Physical Specifications | |
|
Cable Length
N/A
Color
Silver, White
Enclosure Type
Main Body: Aluminum
Magnetic Kits: ABS Plastic Operating Humidity
< 85% non-condensing
Operating Temperature
32 to 118°F (0 to 48°C)

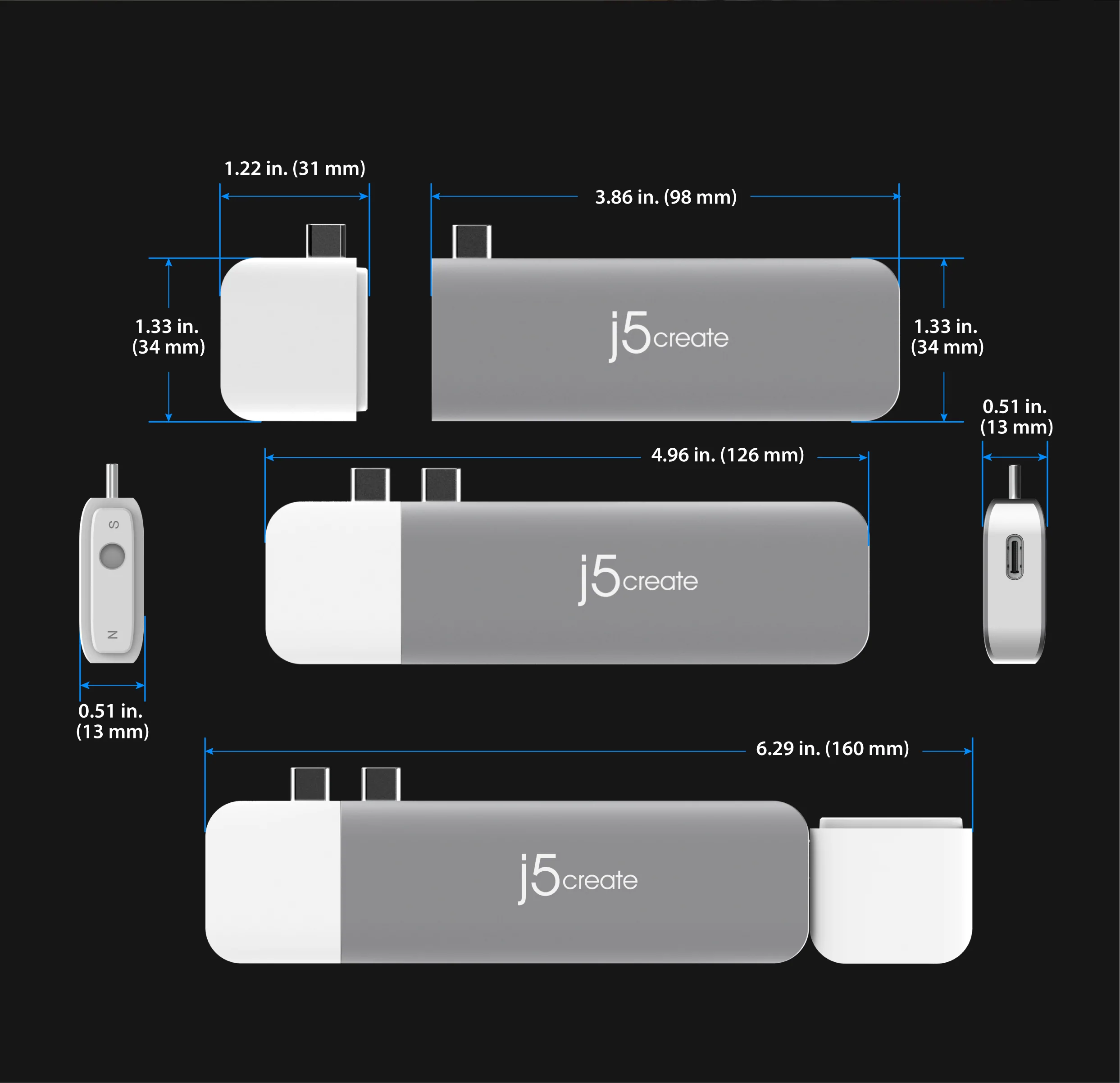

Product Depth
Main Body: 3.86 in. (98 mm)
Magnetic Kits: 0.83 in. (21 mm) Product Height
Main Body: 0.51 in. (13 mm)
Magnetic Kits: 0.51 in. (13 mm) Product Weight
Main Body: 1.69 oz (48 g)
Magnetic Kits: 0.42 oz (12 g) Product Width
Main Body: 1.34 in. (34 mm)
Magnetic Kits: 1.34 in. (34 mm) Storage Humidity
< 85% non-condensing
Storage Temperature
14 to 149°F (-10 to 65°C)
|
|
| Package Contents | |
|
