Atomos Shinobi 4K HDMI/SDI Monitor 7″ – ATOMSHB002
Availability:
Out of stock
- 7″ 1920 x 1200 Touchscreen Display
- 4K60 HDMI 2.0 In/Out, 2K60 3G-SDI In/Out
- 2200 cd/m² Brightness
- HDMI/SDI Cross Conversion
- 2.5mm Camera Control Port for Z CAM E2
- Dual Sony L-Series Battery Slots
- AtomOS; AtomHDR & 3D LUT Support
- 10-Stop Dynamic Range
- Supports a Variety of Log Formats
AED 2,704.00 AED 2,730.00
Out of stock
Item will be shipped in 3-5 business days

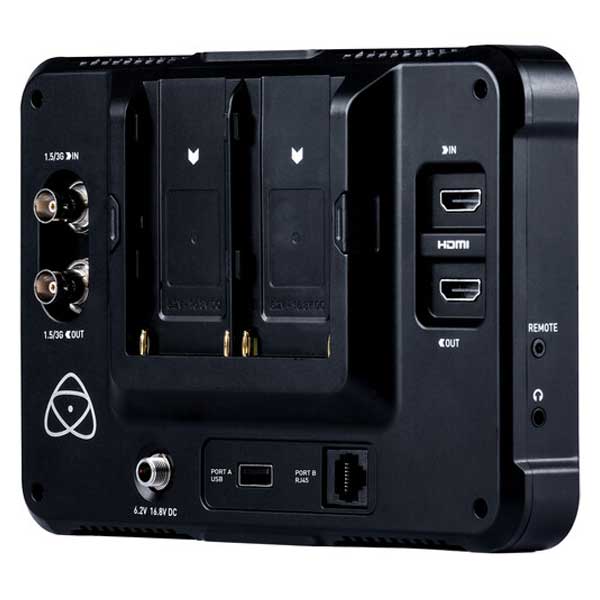

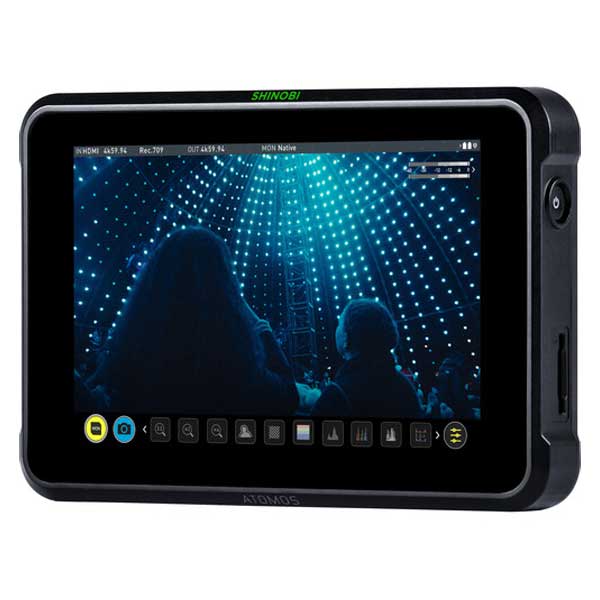

Atomos Shinobi 4K HDMI/SDI Monitor 7″ | PLUGnPOINT. The Shinobi 7 4K HDMI/SDI Monitor from Atomos has a 1920 x 1200 10-bit FRC IPS display with a brightness of 2200cd/m². The monitor supports popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras. It runs the latest AtomOS firmware that features a variety of onscreen analysis tools such as multi-scope views, exposure, framing, focuses assist, waveform, RGB parade, and histogram tools. It also features an SDI card input to load custom 3D LUTs for SDR and HDR viewing.
Display
| Panel Type | IPS-Type LCD |
| Display Size | 7.0″ / 17.8 cm |
| Resolution | 1920 x 1200 |
| Aspect Ratio | 16:9 |
| Touchscreen | Yes |
| Maximum Brightness | 2200 cd/m2 |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| HDR Compatibility | Advanced HDR |
| Pixels Per Inch (ppi) | 325 ppi |
| Real-Time LUT Monitoring | SDR, HDR |
| Image Controls | Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
| Video I/O | 1 x HDMI 2.0 Input 1 x BNC (3G-SDI) Input 1 x HDMI 2.0 Loop Output 1 x BNC (3G-SDI) Loop Output |
| Embedded Audio | HDMI: 2-Channel SDI: 8-Channel |
| Audio I/O | 1 x 1/8″ / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power I/O | 1 x Barrel (16.8 VDC) Input |
| Other I/O | 1 x 2.5 mm (LANC) Output 1 x USB-A 2.0 Input 1 x RJ45 Input/Output |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC |
| Wi-Fi | None |
Format Support
| Video Format | HDMI (8/10-Bit 4:2:2) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI (8/10-Bit 4:2:2) DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Gamma Curve | ARRI Log C, Canon Log, Canon Log 2, Canon Log 3, HDR-HLG, HDR-PQ, JVC J-Log, Panasonic V-Log, REDlogFilm, Rec2020, Rec709, Sony S-Log 2, Sony S-Log 3 |
| Video Signal Conversion | HDMI to SDI
SDI to HDMI |
Power
| DC Input Power | 6.2 to 16.8 VDC |
| Battery Type | 2 x L-Series |
| Power Consumption | 4 W (Typical) 7 W (Maximum) |
Mounting
| Mounting | 2 x 1/4″-20 Female |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C (Recommended) |
General
| Material of Construction | Plastic |
| Dimensions | 7.8 x 5.2 x 1.5″ / 198 x 133 x 39 mm |
| Weight | 1.3 lb / 577 g |
Packaging Info
| Package Weight | 2.695 lb |
| Box Dimensions (LxWxH) | 9.5 x 7.8 x 3.8″ |
